CNC视觉自动对位系统
Case Study: OPPO A1 Composite Plate Machining
项目背景 / Project Background
本项目针对 **OPPO A1 系列手机后盖**。其材料结构为透明基材底部粘合一整张彩色塑胶丝印片。
This project targets the OPPO A1 series back cover, featuring a multi-layer structure with a printed colored plastic sheet bonded to a transparent substrate.

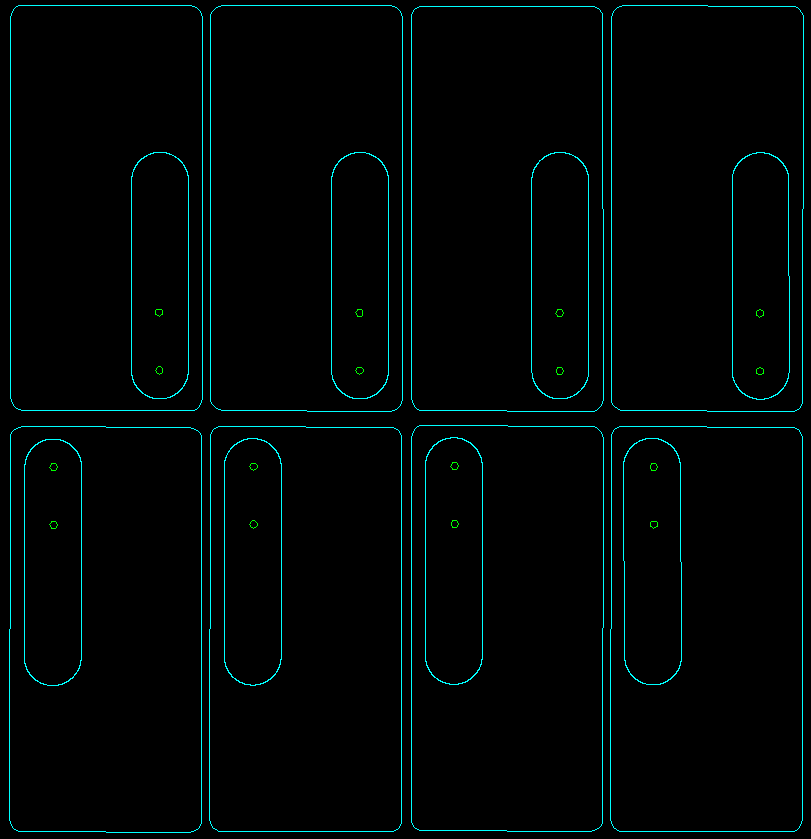

由于层压工艺限制，印刷图案相对于整张大板的物理边缘存在不可避免的偏移和旋转偏差。传统机械靠位加工无法对准每一格“图案中心”，导致摄像头腰型孔开孔位移。
Due to process limits, printed patterns shift relative to physical edges. Traditional positioning fails to align with each pattern center, causing hole misalignment.
核心技术优势 / Key Advantages
针对塑胶材料，避免物理探头接触划伤表面，保护印刷层完整。
Eliminate surface damage on delicate substrates by avoiding physical probing.

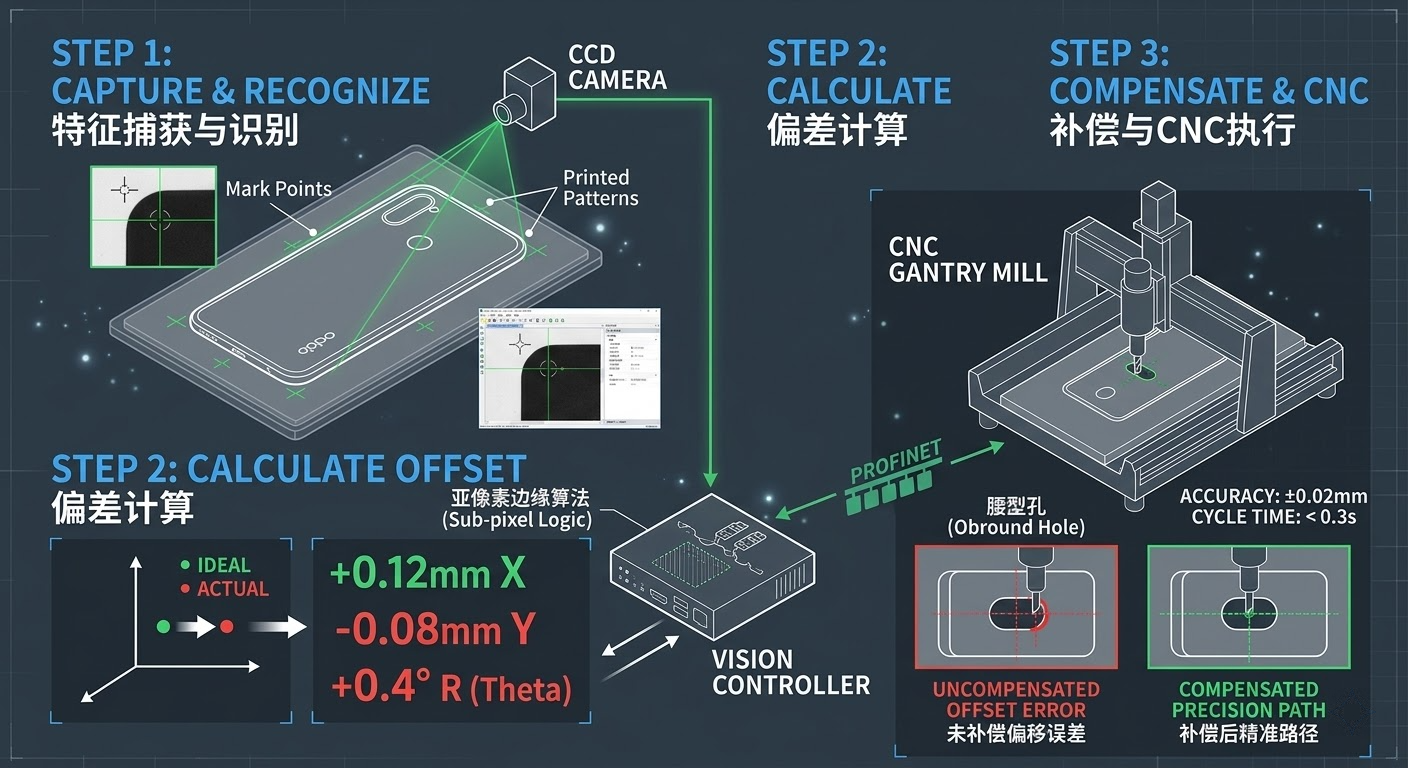

解算 X、Y 方向位移及旋转角度(Theta)，消除丝印套准累积误差。
Resolve X, Y, and Theta offsets to eliminate cumulative registration errors.
基于 OpenCV 深度定制，即使花纹细微也能精准锁定图像特征中心。
Custom sub-pixel logic locks onto minute pattern features with high precision.
通过 PROFINET 实现毫秒级数据交互，实时重构 CNC 动态坐标系。
Millisecond-level data exchange via PROFINET for dynamic coordinate reconstruction.
